Comprehensive Battery Services
R&D, Cell Building, Testing & Analysis
Wildcat

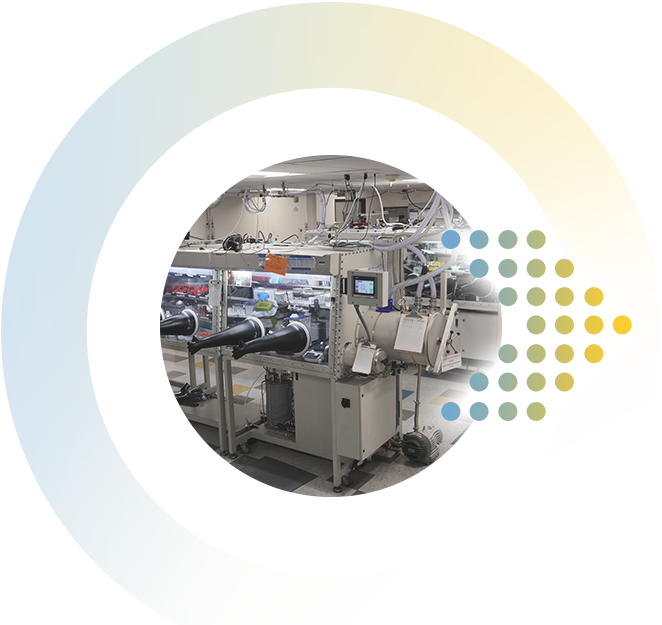

R&D Collaborations
Wildcat uses proprietary high throughput technology to accelerate battery materials R&D. This massively parallel technique enables our scientists to investigate hundreds of materials in the time standard laboratories look at only a handful.
Unique High-Throughput Platform synthesizes thousands of formulations in parallel, each with unique combinations of active materials, additives, and dopants
Collaborating with Wildcat can help identify the best cathode pair with the best anode and electrolyte to create the best performing cell for your KPIs
To date, more than 500k experiments performed in more than 225 collaborative partnerships with more than 85 leading global customers

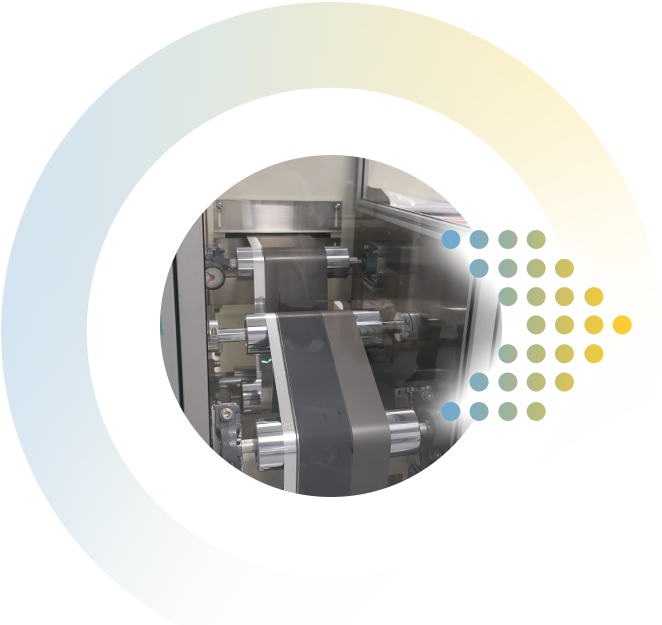

Electrode Coating
Wildcat can provide you with electrode sheets and rolls tailored to your specifications.
Small planetary mixers for development slurries as well as larger planetary mixers for high surface area materials
Strict quality check for all steps of the mixing process (pH, rheology, density, Hegman, etc.)
Flexible coating capabilities for small (40m) electrode films, in single and double side coating configurations

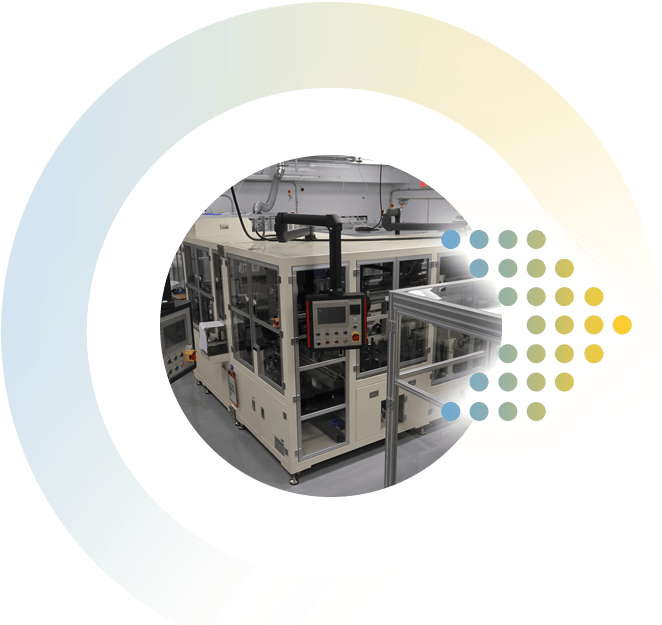

CellBuilding
Wildcat can utilize its long expertise to fabricate a variety of different pouch cell designs for you.
Optimized pouch cell assembly capabilities with various designs available:
- Single layer pouch cells
- Multi layer pouch cells (~1-2Ah)
- Large multi layer pouch cells (~20Ah)
Building capacity of ~200-500 cells/month
Cells are built in a custom Dry Room environment using thoroughly proven assembly techniques

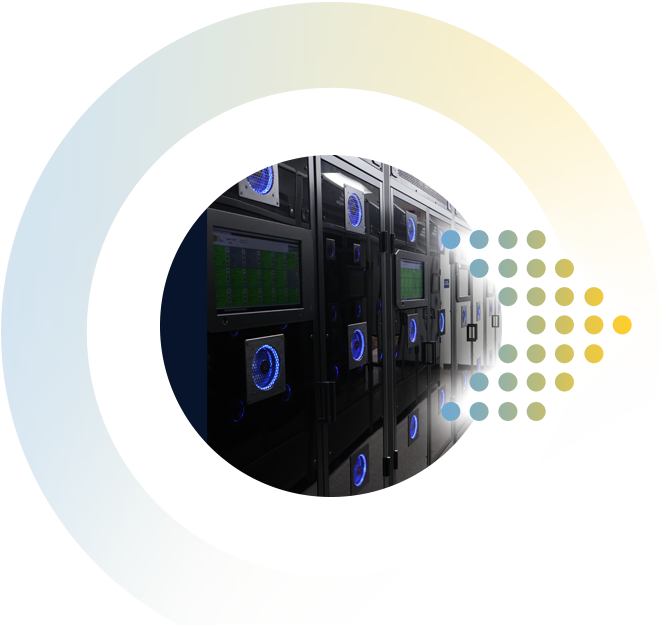

CellTesting
Wildcat’s unique, custom made, cell testing hardware are now available for lease.
In-house designed, developed and fabricated testing towers (Eco-Stat) with unique capabilities:
- 36 individual temperatures per tower
- Unlimited temperature changes per experiment
- Fast temperature changes (~20min)
- Temperature logging on every cell
- Stable to +/-0.01°C, eliminates all data noise due to temperature fluctuations
Currently 2000+ pouch cell test channels are available at Wildcat with cell skin-temperature monitoring and Linear Displacement Measurement (LDM) capabilities for cell expansion
Custom cell testing fixtures that can accommodate a wide variety of pouch cell form-factors
Towers are available for lease in flexible agreements that fit your requirements

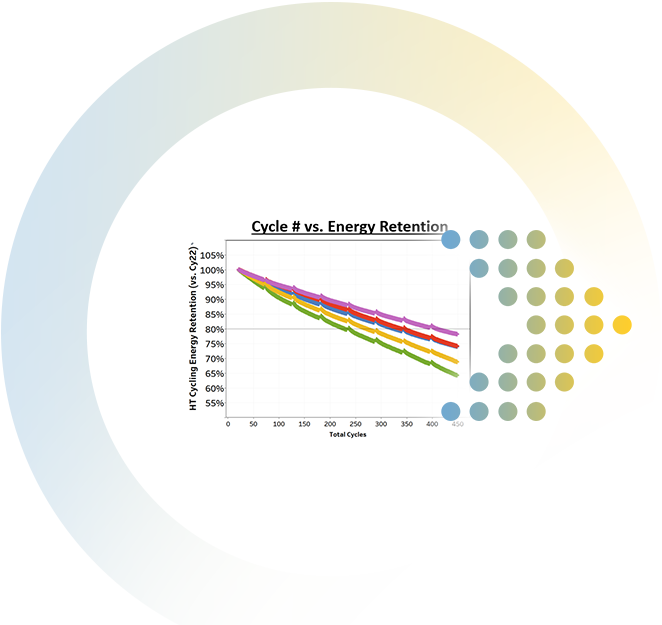

DataAnalysis
Wildcat can enable a more flexible environment for your data processing needs.
In addition to providing you with the data generated from the testing, Wildcat is offering services related to data processing, analysis and reporting
Data can be evaluated based on your KPIs and comprehensive reports can be created and be available upon request
Data can be plotted according to your request, making them readily available for your internal evaluation and reporting
